TROMMELFILTER

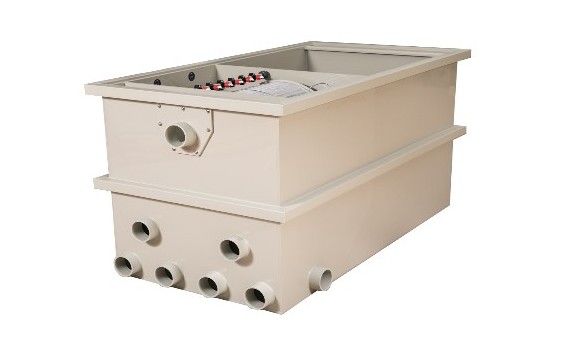

The CL-M Drum Filter is a filter range for mechanical and biological pond filtration, in which the CL50-M combines both filter functions with a mat chamber.

The CL50-M is suitable for a koi pond of 50 m³ or a swimming pond of 200 m³. If you are looking for a filter that combines mechanical filtration with a biological filter that starts up quickly, this variant provides a mat chamber for that purpose. The maximum flow rate is 50 m³ per hour.

• Key features:
• Mechanical filtration with three 120-micron screen elements, 10 mm thick, five spray nozzles and an internal 5 bar rinse pump.
• Biological filter section with space for 250 litres of Hel-X and two mats measuring 2000 x 1000 mm. The mats are not included.
• DVS digital HQ control with WiFi and a 2-pin sensor as standard.
• Six Ø110 mm inlets, three Ø110 mm gravity outlets and a separate Ø110 mm waste water drain.
• Direct-drive motor rated at 60 W / 50 Nm and two air diffuser discs with 20/25 connection.
• Expandable with automatic gutter rinsing, a temperature sensor and an automatic top-up system.

When planning installation, allow for the dimensions of 2232 x 970 x 985 mm (L x W x H) and an installation height of 120 mm. Would you like a customised solution for your pond installation? Ask AB Koi Marum about the options for this variant.
