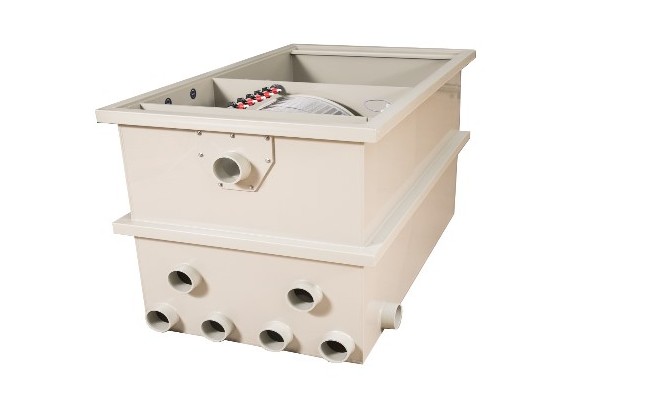

Technical data CL65 |
|
Maximum Flow 65 m3/h |
Gravity / Airlift / Pump Fed |
Pump Fed Loses 30% Flow |
Installation height above water level 12 cm |
|
Materials: |
|
Casing PP 10 mm / PP15 mm / Drum PP15 mm |
Stainless steel 316/304 / Silicone seal |
PP Housing cut with a CNC Machine |
|
Specifications: |
|
Standard inputs and outputs according to drawing |
Changes in and outputs possible in consultation |
1 x 110mm Wastewater Drain |
Diameter of the drum 60 cm x 50 cm |
Sieve panel 75 micron stainless steel 316 |
Drum Bypass 2 x 90 mm |
Demountable spray bar |
Removable flushing trough |
Built-in flushing pump 5 Bar |
Moving bed for 300 liters Helix |
Built-in 35 CM . air disc |
50 NM drive motor with 4 rpm |
With a lid |
|
Control box: |
|
Automatic cleaning, plug and play by Sensor with probes |
Turn/flush manual control |
Spin/flush time adjustable |
Flush level adjustable |
Sockets for flushing pump, pond pump and drum drive motor |
Standard dry-running protection for pond pump |
All parts built up in modules and therefore quickly interchangeable |
Supplied with comprehensive manual |
With CE Mark |
|
2 year warranty on all parts (ex. sieve elements) |
